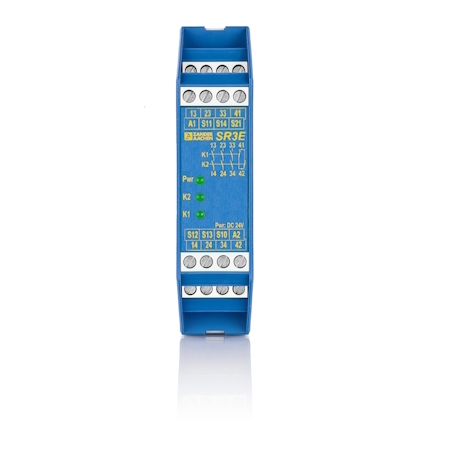

Zander Aachen, SR3E - 3NO/1NC - safety module, Elevator Safe Carriage for passenger and goods passenger lifts
Model:
SR3E
Brand:
ZANDER AACHEN
Country of Origin:
India
Product Approvals:
CE
Sample Available: No
For product pricing, customization or other inquiries:
Request for Price
Saket Electronics
-
India
- Distributor
-
Website:
www.saketelectronics.co.in -
Location:
203-B, Sarjan Complex, Pratap Road, Dandia Bazar
Vadodara
Gujarat
The safety relay SR3E is especially designed for the use as a safety component for elevators according to the latest version of the approval EN 81-20:2014 and EN 81-50:2014 and is certified by TÜV Rheinland.
Your advantage: This relay is also certified for the use in elevator body / elevator car – this means a shorter wiring path and space gain.
A widespread application spectrum is enabled through the additional certification up to PL e, SILCL 3, Category 4 according to EN ISO 13849-1:2015 / EN 62061:2005 + A2:2015 / IEC 61508 Parts 1-2 and 4-7:2010.
Features
- Safety function: Emergency stop monitoring for elevators
- Safety certified according to: EN 81-20:2014; EN 81-50:2014
- Also safety certified according to: EN ISO 13849-1:2015; EN 62061:2005 + A2:2015; IEC 61508 Part 1-2 and 4-7:2010
- Approvals: CE, TUV
- Supply voltage: DC 24 V +/- 10%
- Number of safe relay contacts: 3
- Max. switching capability of safe relay contacts: 8 A / 250 VAC resistive load
- Number of auxiliary relay contacts: 1
- Number of non time-delayed safe contacts: 3
- Number of time-delayed safe contacts: -
- Starting behavior: Automatic start or manual, monitored start
- PL; Cat.; SILCL (EN ISO 13849-1:2015; EN 62061:2005 + A2:2015; IEC 61508 Part 1-2 and 4-7:2010): PL e; Cat. 4; SILCL 3
- Width: 22.5 mm
