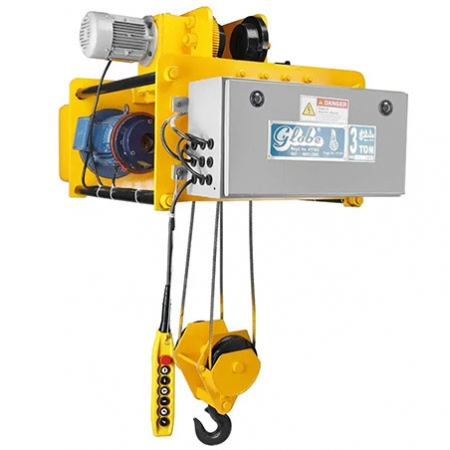

Electric Wire Rope Hoist (With Electric Travelling Trolley) Capacity 5000kg (5 ton), Standard lifting height 6m, Hoisting Speed 3 Mpm
Model:
GWRH M2-104
Brand:
GLOBE
Country of Origin:
India
Sample Available: No
HS Code:
84251110
For product pricing, customization or other inquiries:
Request for Price
Globe Overseas Pvt. Ltd.
-
India
- Manufacturer
- Founded: 1995
-
Number of Employees:
11 - 50 People -
Website:
liftingmachines.in -
Location:
B-9, DSIIDC Engineering Complex Mangolpuri Industrial Area, Phase-1
New Delhi
Delhi
Electric Wire Rope Hoist (With Electric Travelling Trolley)
Safe & Reliable
Electric Wire Rope Hoists are designed, manufactured & tested to meet IS standards, Robust Gearbox design ensures better reliability of the product life span and safety.
More Details:
- Warranty: 12 Months
- 100% Original Products
Features
DESIGN
“Globe” Electric Wire Rope Hoists are designed as per IS 3938 – 1983 (R2012) and are suitable for light and medium-duty applications. We also do customizations in hoists as per Customer Requirements.
CONSTRUCTION
“GLOBE” hoist have a unique modular construction which makes them an ideal choice since each sub assembly is easily accessible individually, thus reducing the time and cost involved in the maintenance.
STRUCTURE
Years of Experience for different applications enabled “Globe” to produce heavy duty / robust structure which ensures long life & safety of the user, material & machinery.
ROPE DRUM
Rope drums are fabricated with seamless tubes having flanges at both ends. Each drum is precisely machined and grooved suitably for specified wire ropes. Ropes guiding arrangements ensures & protect overlapping of wire rope & winds full length of rope in one layer.
GEAR BOX
Totally enclosed, immersed oil bath lubricated Gearbox, fitted with heavy duty precision cut helical Gears and Pinions with alloy Steel material.
HOOK
Confirming to IS: 15560 Free to rotate & swivel.
BRAKE
Instant action ‘fail to safe’ Electromagnetic DC disc type, ensures maximum safety and reliability in operation.
LIMIT SWITCH
Snap action limits switch to prevent over hoisting and over lowering is provided for maximum safety.
CONTROL
From push button pendent station supported with steel wire rope, operating at 110 volt from ground level.
Technical Specifications
|
Model |
|
GWRH
M2-104 |
|
Capacity |
ΤΟΝ |
5 |
|
Standard
lifting height |
M |
6 |
|
Hoisting
speed |
MPM |
3 |
|
Hoisting
motor |
K.W |
3.7 |
|
Traversing
speed |
MPM |
15 |
|
Traversing
Motor |
K.W |
0.75 |
|
Motor
Specifications |
|
40%
CDF, 150 Starts/Hr, S4 Crane duty, 50 Hz, 415V, 3 Phase, AC, Squirrel cage
Induction Motor, IE2. |
|
No.
of falls (Rope) |
Nos. |
4 |
|
Rope
Diameter |
MM |
10 |
|
Rope
Construction |
|
6 x
36/37, Fibre Core (FMC) /1960 N/MM Sq., Ungalvanised, as per IS-2266. |
