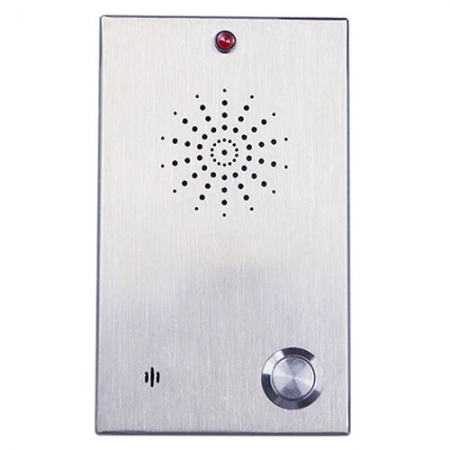

JR505-SC, Mini Size Handsfree Elevator Telephone
Model:
JR505-SC
Country of Origin:
China
Product Approvals:
RoHS, FCC, CE
Sample Available: No
For product pricing, customization or other inquiries:
Request for Price
J&R Technology Ltd
-
China
- Manufacturer
-
Website:
www.jrtelephone.com -
Location:
F#3, Build#1, BWN Industrial Park, Fuyong Town, Bao'an District
Shenzhen
Guangdong
Model Number: JR505-SC
This Elevator Emergency Telephone is based on a stainless steel faceplate and provides a clear handsfree, loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.
APPLICATIONS of Handsfree Elevator Telephone
Ideal for Elevator, Lift, Metro, Subway, Prisons, Jails, Parking lots, Hospitals, Guard Stations, Police stations, Hotels, Doors, Bank halls, ATM machines, Stadiums, inside and outside buildings, etc.
MAIN FEATURES of Handsfree Elevator Telephone
- Standard Analogue phone
- Robust housing, constructed of stainless steel
- Mini size, easy installation
- Vandal-resistant metal button
- Hands-free operation
- Programmable for speed-dialing (PPT)
- Can set a service number to receive service calls
- Non-volatile memory
- On-wall mounting, simple installation
- Weather protection IP54-IP65
- 4 X Tamper proof screws for mounting
- Fast-fit terminal connection
- Telephone line powered
- CE, FCC, RoHS, ISO9001 compliant
TECHNICAL SPECIFICATIONS of Handsfree Elevator Telephone
Analogue Version
Power Supply: From the analogue telephone network
Supply Voltage: 24 VDC to 65 VDC
Supply Current: 20 mA DC to 100 mA DC
Ringer Volume:
- 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method: DTMF mode in accordance with ITU-T recommendation Q.23.
Ambient conditions
Protection type: IP 66 as per EN60529
Operating temperature: -25°C to +65°C
Storage temperature: -35°C to +75°C
