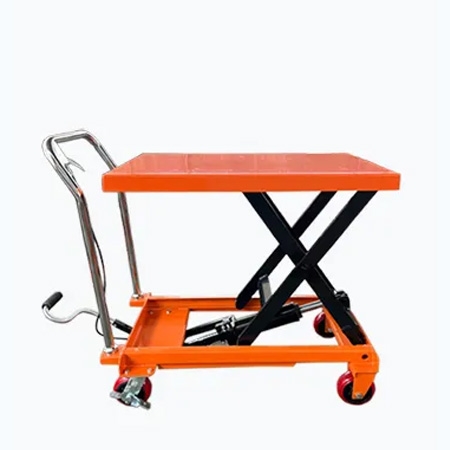

Maxxlift, 500Kg Hydraulic Lift Table
Model:
TIL-500
Brand:
Maxxlift
Country of Origin:
India
Sample Available: No
For product pricing, customization or other inquiries:
Request for Price
TechMachi India LLP
-
India
- Manufacturer
-
Website:
www.techmachi.in -
Location:
Plot No.-101, Sec-53 Phase-V Kundli Industrial Area
Sonipat
Haryana
500Kg Hydraulic Lift Table
Description
This scissor-type high-lift truck, can load 350kg-1000kg, lifting height 800mm. The high-lift truck can be used not only for transportation, but also as a working platform.
- Single lift cylinder, more convenient for maintenance.
- The vehicle can be used as a manual transfer vehicle, lifting platform, assembly platform or workbench.
- The design of fast lifting oil cylinder improves work efficiency.
- When reaching a certain height, there are additional supporting legs to improve the stability of the vehicle.
- The design of the long handle keeps a safe distance between the operator and the vehicle body making the operation safe and comfortable.
Technical Specifications:
|
Model No. |
TIL-500Kg Hydraulic Lift Table |
|
Rated Load |
500Kg |
|
Table Height |
Max.-0mm,
Min.-85mm |
|
Table Length |
1140mm |
|
Single Fork
Width |
160mm |
|
Table Overall
Width |
520mm |
|
Net Weight |
105Kg |
