Turbocell, PG304, Rope Tension Monitoring System, Maximum Load Capacity 1500 kg
For product pricing, customization or other inquiries:
Request for Price
Turbocell elevator
-
Iran
- Manufacturer
-
Website:
www.turbocell.ir -
Location:
Isfahan, Science and Research City, Technology Building 2, Unit 241
Isfahan
Isfahan
- Sheave and Rope Wear
- Elevator Cabin Vibrations
- Increased Wear and Tear on Motors and Rails

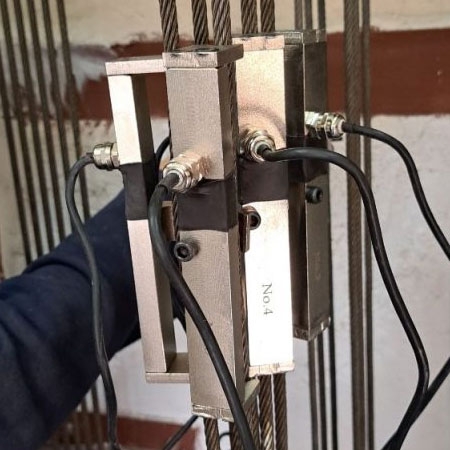

- 8 High-Precision Sensors – Dedicated to each individual rope.
- Calibration-Free Operation – Eliminates setup time and ensures accuracy.
- User-Friendly Interface – Intuitive and easy to operate.

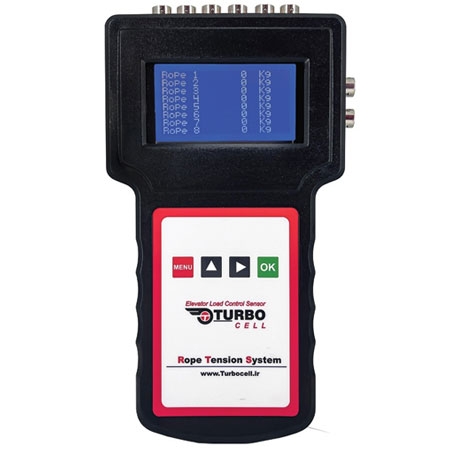

- Advanced Display Unit – Simultaneously monitors all 8 sensors.

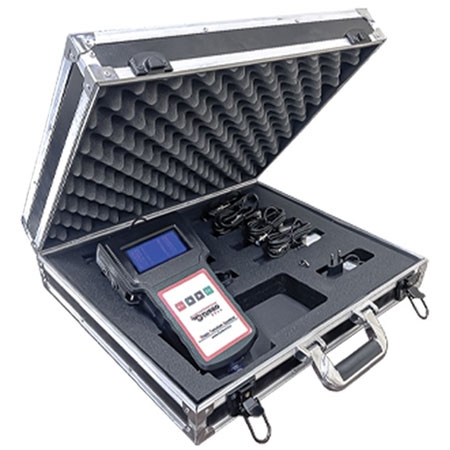

- Durable Carrying Case – The tool comes in a specially designed carrying case that protects the sensors from damage and includes all necessary accessories for operation.
- Quick Installation – Designed for fast and hassle-free setup.
|
Specifications
for each Loadcell Sensors |
|
|
Nominal
Weight |
1000 Kg |
|
Maximum
Load Capacity |
1500 kg |
|
Sensor
Excitation Voltage |
≥ 10 V |
|
Output
Type |
4-wire load cell |
|
Sensitivity
|
2 ± 0.1% mV/V |
|
Accuracy |
±0.1% FS |
|
Operating
Temperature |
-20°C to +60°C |
|
Body
Material |
Heat-treated
steel with chrome-nickel coating |
|
Protection
Class |
IP66 |
|
Cable
Length |
2m |
|
Number
of sensors |
8 |
|
|
|
|
Specifications
– Controller |
|
|
Input
Voltage |
9VAC |
|
Max
Current Consumption |
Less than 500 mA |
|
Number
of sensor’s input channel |
8 |
|
Protection
Class |
IP65 |
|
Display
type |
graphical LCD |
|
|
|
|
Power
Adapter Specifications |
|
|
Input
Voltage |
220 VAC |
|
Output
Connector |
Single Pin Connector |
|
Plug
Type |
Standard two-pin plug |
|
Current
Rating |
1000 mA |
|
Output
Voltage |
9 VDC |
