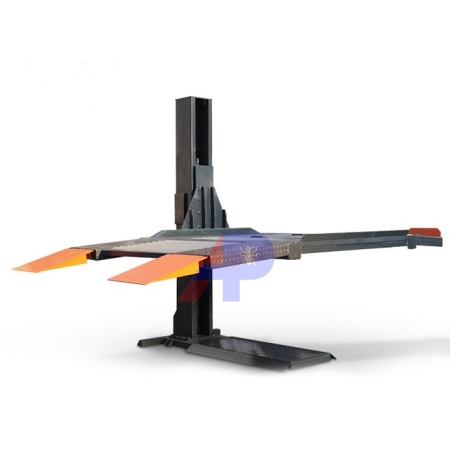

Single post parking lift, One cylinder and one post design, Electrical or PLC control, hydraulic drive, Multiple locking position
Model:
POP20
Country of Origin:
China
Payment Terms:
T/T
Sample Available: No
For product pricing, customization or other inquiries:
Request for Price
Qingdao Lanhai Shengyuan Machinery Equipment Co., Ltd
-
China
- Manufacturer
-
Website:
www.antparklift.com -
Location:
Industrial Park Haibin, Huangdao
Qingdao
Shandong
Feature：
One cylinder and one post design.
Electrical control, hydraulic drive.
Multiple locking position
Auto locking device make parking much safer
When there is something wrong with the solenoid, you can use manual unlock device.
Remote control is convenient to operate.
Pass 115% dynamic loading test and 150% static loading test.
Take up less space.Easy to assemble.
Easy to install.
Used wildly in house,hotel,hospital,office building etc.
Safety device：
Limited switch device: to limit the highest height of lifting.
Photoelectric switch: to prevent the people from accidently entering into the equipment under operation.
Anti-fall device: to prevent the vehicle loading pallet from undesired disconnection.
Emergency switch: the emergency switch button is used to cut power off when there is something abnormal during the equipment process.
Technical Parameters：
|
Name |
Single
post parking lift |
|
Model |
POP20 |
|
Vehicle dimensions |
5000*1850*1550MM |
|
Lifting capacity |
≦2000KG |
|
Cylinder |
1 |
|
Mode of drive |
Hydraulic
move |
|
Mode of control |
Electrical
control |
|
Mode of operate |
Button/Remote
control（Option） |
|
Unlocking method |
Electrical |
|
Up/Down speed |
2M/1.9M/MIN |
|
Outline dimension |
4433*2650*2584MM |
|
Inner width of car platform |
4409*2000MM |
|
Device weight |
1200KG |
|
Lifting height |
1800MM |
|
Lifting mode |
Cylinder+Chain |
|
Motor power |
2.2KW |
|
Voltage |
220-415V,50/60HZ,1/3PH |
|
Surface treatment |
Powder
coated or hot galvanized（optional） |
