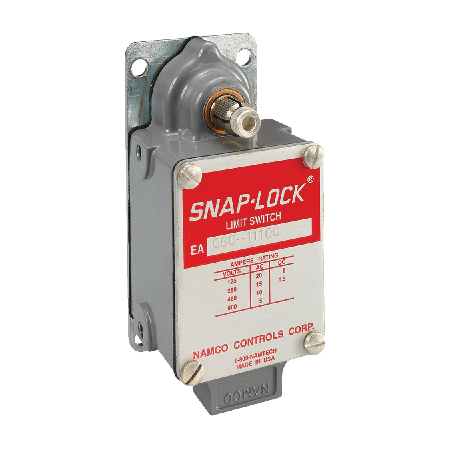

Heavy Duty EA060 Series Limit Switch
The compact EA060 Series is a heavy duty, short travel limit switch featuring one normally open and one normally closed circuit. This quick make, quick break, signle pole, double throw (SPDT) limit switch is engineered with Rocker Type SNAP-LOCK® Technology in a die-cast zinc housing for corrosion resistance. This series is available in standard and wide mounting. The EA060 Series is designed for short mechanical travel of less than 61/2º to trip. This limit switch series offers heavy duty butt contacts and heavy operating torque for severe industrial use. For hazardous location requirements, see EA880 Series Heavy Duty Limit Switch.
Technical Data
- Quick Make, Quick Break, Single Pole, Double Throw (SPDT)
- Rocker Type SNAP-LOCK® Technology
- One normally open & one normally closed (1NO/1NC) contacts in Form “Z” contact arrangement
- Meets NEMA 1,4 & 13 requirements. Enclosure is watertight, oil & dust tight
- Contacts are made of silver alloy
- Temperature Range: -20º C to +90º C
- Operating lever is adjustable by 7º30' increments thru 167º
- Wiring space is ample for up to size 12 wire with easily accessible terminal screws
- Many different options available including: precious metal contacts; high temperature (0º C to 150º C) components and lubricants; low temperature (-40º C to 90º C) components and lubricants; and reverse shaft position
- Weight: Approx. 2.3 lbs
- For Ordering Information, see EA060 Series Specification Sheet.
- Please note, operating levers are sold separately.
