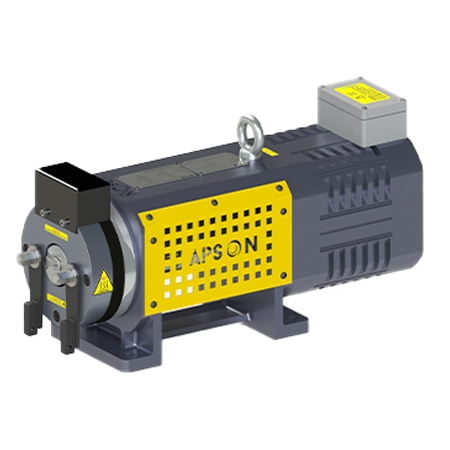

Elevator Traction Machine, Perfect Solution for Narrow Shaft, Capacity, 450 kg, Speed 0.50 m/s, Rated Voltage AC380V, Sheave Dia Ø100 mm
Model:
BD450-050
Brand:
APSON
Country of Origin:
India
Payment Terms:
L/C, T/T, Western Union
Sample Available: No
For product pricing, customization or other inquiries:
Request for Price
APSON MOTOR INDIA PRIVATE LIMITED
-
India
- Manufacturer
- Founded: 2016
-
Website:
www.apson.co.in -
Location:
Plot No. C1 – 539, Road No. 41, Nr. Odhav Post Office
Ahmedabad
Gujarat
BD450-050 (AC380V – Ø100 mm)
- Warranty: 5 Years
- Product: Elevator Traction Machine
- Capcity: 450 kg
- Speed: 0.50 m/s
- Rated Voltage: AC380V
- Sheave Dia: Ø100 mm
- Duty Cycle: S5-40%
Additional information:
|
By Technology |
Inner Rotor |
|
By Type |
Perfect Solution for
Narrow Shaft |
|
By Capacity |
450 kg |
|
By Speed |
0.50 m/s |
|
Rated Voltage |
AC380V |
|
Rated Output Power |
1.50 kW |
|
Rated Current |
4.00 A |
|
Rated Speed |
191 rpm |
|
frequ |
38.2 Hz |
|
Sheave Dia |
Ø100 mm |
|
torque |
75 N.m. |
|
Duty Cycle |
S5-40% |
|
Starts Per Hour |
180 ST/H |
|
Max Static Load |
2500 kg |
|
Pulley Groove Type |
Flat Belt |
|
Roping Style |
02:01 |
|
pole |
24 |
|
IP Rating |
IP41 |
|
Insulation Class |
F |
|
ropes |
2 x 60 |
