Stiltz Trio, Wheelchair Lift, Max Travel Up to 6 metres, Roped drum, braked gear motor drive, Power Supply 230V AC
Model:
Stiltz Trio
Brand:
Stiltz
Country of Origin:
Taiwan
Product Approvals:
CE
Sample Available: No
For product pricing, customization or other inquiries:
Request for Price
Stiltz Homelift
-
Taiwan
- Manufacturer
- Founded: 2010
-
Number of Employees:
51 - 100 People -
Website:
www.stiltzlifts.tw -
Location:
No. 239, Section 3, Chengde Rd, Datong District
Taipei
Datong District

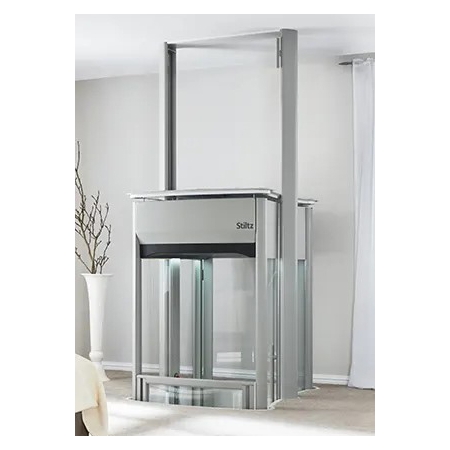

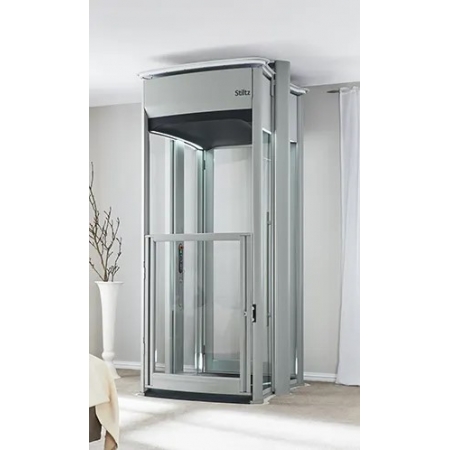

Wheelchair Lift – Stiltz Trio
The Stiltz Trio wheelchair lift range helps wheelchair users live independently at home.
Our innovative three-person lift is an easy, adaptable solution to overcome accessibility barriers and make moving seamlessly between floors possible for everyone.
The lifts in our Trio range can fit a standard-sized wheelchair or up to three passengers, making them ideal for users with walking frames or disabilities. While many through-floor lifts can be bulky and take up lots of space, our Trio Home Lifts are compact and designed with a sleek and contemporary appearance to fit seamlessly into your home.
All of our Stiltz Home Lifts are freestanding and don’t need to be fixed to a wall, and simply plug straight into a standard 13-amp power socket in your home. Thanks to their small footprint, our wheelchair lifts can be fitted almost anywhere in the home.
Our Trio Home Lifts have been fitted in hundreds of homes across the UK, making long-term accessible living possible for customers across the country.
Advantages of Stiltz Trio +
Small footprint

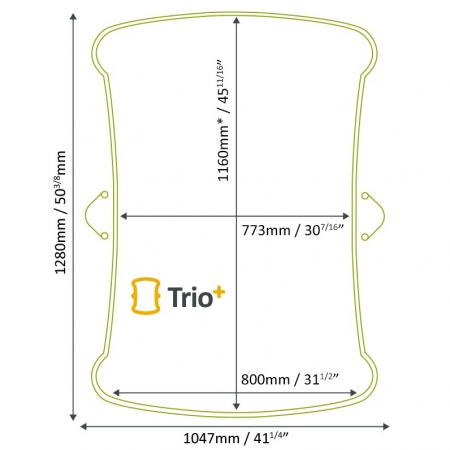

The Stiltz Home Lift has one of the smallest footprints of any home lift, covering less than 1 ft² .
Low power consumption
All lifts plug directly into a regular power socket, making them very environmentally friendly and economical.
Quiet as a whisper
Unlike other home lifts, the Stiltz does not use noisy hydraulic or vacuum systems, making it quieter than many stair lifts
Unique guidance system

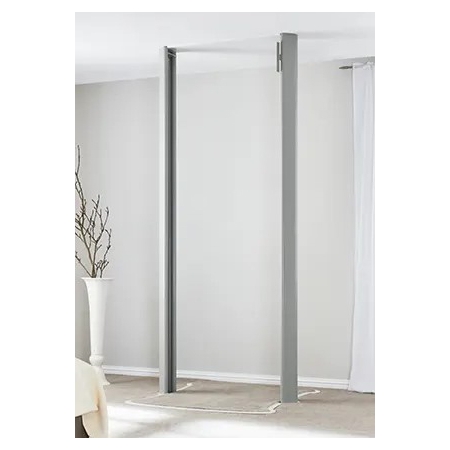

The home lift travels on self-supporting pillars, which, thanks to parallel and vertical guides, eliminate the need for load-bearing walls.
Quick Installation
The modular design means the lift can be installed under most thresholds and ceilings and can be assembled quickly, typically in just one day.
Self contained drive system
The home lift is powered by an electric motor that is cleverly placed on top of the lift, out of sight.
Standard Features
- Trio+ : Light warm grey structure with a transparent polycarbonate lift carriage.
- Half Height Doors: Doors are interlocking and made to match the trim of the lift.
- 2 remote controls : can be used to call and send the lift remotely, and can also be used to move heavy or bulky items between floors.
- One-Year Warranty : All Stiltz lifts come with a comprehensive 12-month parts and labour warranty.
- Interior LED spotlights: These automatically turn on when the user enters the lift and remain on throughout the journey
- Battery backup system : If a power outage occurs while the lift is in use, it will descend to the lower level of the home and wait until power is restored.
- Full-height light curtain : The light curtain is used when equipped with a half-height door.
- In-Room Phone : In the very unlikely event that a lift stops operating while you are riding, help is only a phone call away.
Technical Specifications:
- Drive: Roped drum, braked gear motor drive
- Power Supply: 230V AC | 5 amps
- Maximum Load: Trio+ | 250kg | 39st | 550lbs
- Maximum Travel: Up to 6 metres
- Entrance Security: Half height light curtain / obstruction sensor – optional full height door
- Maximum Speed: 15cm / Second
- Warranty: 12 months parts and labour warranty
- Compliance: European Machinery Directive 2006 / 42 / EC
- Rope Diameter: 6mm Galvanised steel rope
- Additional Sensors: Out-of-balance & overload detection and light curtain
- Lighting Type: 4 x 3w LED downlights
- Landing Call Stations: 2 Wireless remote control units – call / send facility (3 x standard aaa batteries in each)
- Installation: Typical installation takes two day
- Operation: Hold-to-run controls
- Configuration: Single entry or double entry / Thru-Car
- Power Source: The homelift is powered via a cable to the power point which is typically positioned downstairs behind the left-hand vertical rail. Consequently, the trailing cable may be visible from behind the lift depending on installation type and location.
