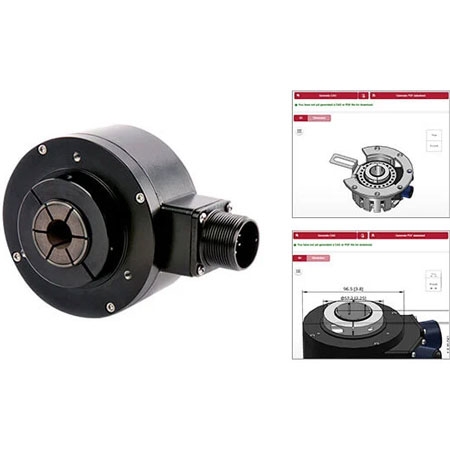

HS35R Heavy Duty Optical Encoder
For product pricing, customization or other inquiries:
Request for Price
Saket Electronics
-
India
- Distributor
-
Website:
www.saketelectronics.co.in -
Location:
203-B, Sarjan Complex, Pratap Road, Dandia Bazar
Vadodara
Gujarat
- Phased Array Sensor for Reliable Signal Output
- Rugged Design Withstands up to 400g Shock and 20g Vibration
- Customizable Mounting Options including Torque Arm with Optional Grounding Strap
- Unbreakable Code Disc up to 20,000 PPR
- Heavy Duty Design Rated for IP67 Option
- 400G Shock and 20G Vibration Independently Validated
Description
The HS35R series is the
ruggedized version of the original vector-duty hollow-shaft encoder. With 400g
shock rating, IP67 sealing, and wide -40ºC to 100ºC temperature range, the
HS35R raises the bar on vector-duty encoder performance providing increased
reliability and maximize equipment uptime in mill and heavy-duty plant
environments.
General
|
Feedback
Type |
Incremental |
|
Technology |
Optical |
|
Mounting
Configuration |
Hollow
Bore, direct mount over shaft with 3 different tethers available |
Mechanical
|
Encoder
Size (Flange) |
>2.5" |
|
Hollow
Bore Size |
6mm
to 1 1/4" Bore |
|
Shaft
Size |
5/8" |
|
Housing
Material |
Aluminum |
|
Max.
Operating Speed |
6,000
RPM |
Electrical
|
Resolution |
1-20000
PPR |
|
Supply
Voltage |
5-26V,
5-15 VDC |
|
Interfaces |
Open
Collector, Open Collector With Pull-Up, Push-Pull, DLD 7272, DLD 4469, High
Power MOSFET Line Driver |
Environmental
|
Protection
Class (IP) |
IP52
or IP67 |
|
Approvals
/ Certifications |
CE,
ROHS |
|
Operating
Temperature Range |
-40ºC
to +100ºC |
|
Storage
Temperature |
-40ºC
to +100ºC |
|
Environment |
Non-Hazardous |
