WRLIFT, Mast Climbing Work Platform, Max Height: 200 mt, Capacity: 1250 Kg (Single Column), 2500 Kg (Double Column) Speed: 8 m/min.
Model:
FC2500
Brand:
WRLIFT
Country of Origin:
Turkey
Payment Terms:
L/C, D/P
Sample Available: No
For product pricing, customization or other inquiries:
Request for Price
WRLIFT
-
Turkey
- Manufacturer
-
Website:
www.wrlift.com -
Location:
Orhaniye Mah. Fatih Sultan Mehmet Blv. No: 362, Kahramankazan
Ankara
FC2500 MAST CLIMBING WORK PLATFORM
- Maximum Height: 200 mt
- Maximum Width: 10,5 Meters (Single column), 30 Meters (Double column)
- Capacity: 1250 Kg (Single Column), 2500 Kg (Double Column)
- Speed: 8 m/min.
- Control System: Inverter
- Over Load Sensor: ✔
- Speed Control: ✔
Usage Area of Mastclimbers

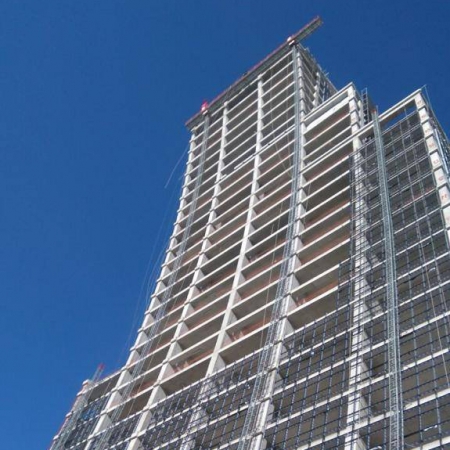

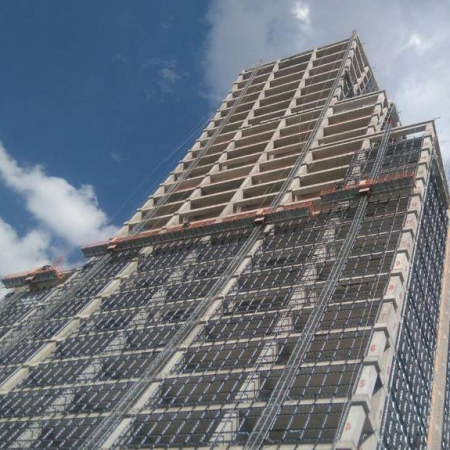

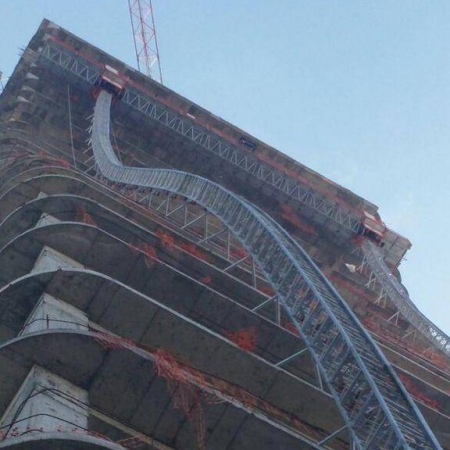

Mast Climbing Work Platforms are the systems used in painting, jacketing, repair and restoration works on the construction sites, buildings, manholes, and shipyards. The most important feature that distinguishes FC 2500 from other platforms is that it has inverter and load cell. In this way, it provides you with extra security.
What is a Mast Climbing Work Platform?

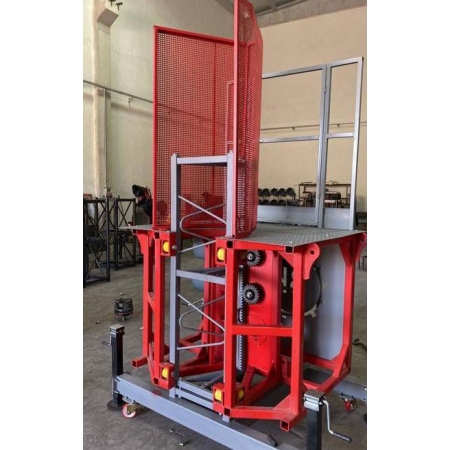

The FC 2500 work platform is a rack-and-pinion lifting device designed for the transport of people and material. The platform is driven by means of a drive unit equipped with electric motors and gearboxes. The drive unit includes a safety device.
The work platform may be mounted on a steerable chassis for mobile use or on a mini-frame. The steerable chassis can be equipped with a driven axle. The platform is fixed to the building with anchor arms every six meters The steel structure of the chassis and the center of the platform is protected by a two-component coating system, the other parts are hot-dip galvanized. The mast is composed of mast sections. The FC 2500 is a double column platform The FC 2500 can reach a maximum width of 30 meters
TECHNICAL SPECIFICATIONS
|
Load
Capasity |
2500
kg |
|
Maximum
Height |
150
m |
|
Mast
Size |
440x440x1500
mm |
|
Mast
Weight |
51
kg |
|
Connection
Distance |
6 m |
|
Platform
speed |
8
m/min |
|
Maximum
width |
30 m |
|
Platform
Size |
1000 x
1500 mm |
|
Supply
Voltage |
380/50
Volt/Hz |
|
Motor
Power |
4 x
2,2 Kw |
|
Platform
Unit |
2 pcs |
SAFETY STANDARDS
- Safety Device
- Load Cell
- Stop mast without a rack,
- Connection with anchor arms every 6 meters,
- Upper and lower limit switches to limit platform movement,
- Balancing system
- Emergency stop button,
- Low and high voltage protection device,
- Audible warning system before each movement,
- Continuous audible warning system on descents,
- Manual lowering lever,
- Emergency siren system,
- Warning signs.
