Model: FC1250 VIPER

Brand: WRLIFT

Country of Origin: Turkey

Payment Terms: L/C, D/P

Sample Available: No

For product pricing, customization or other inquiries:

Request for Price

WRLIFT

Turkey
Manufacturer
Website:
www.wrlift.com
Location:
Orhaniye Mah. Fatih Sultan Mehmet Blv. No: 362, Kahramankazan
Ankara

View Supplier's Profile

FC1250 VIPER

Maximum Height: 200 mt
Maximum Width: 10,5 Meters (Single column), 30 Meters (Double column)
Capacity: 1250 Kg (Single Column), 2500 Kg (Double Column)
Speed: 8 m/min.
Control System: Inverter
Over Load Sensor: ✔
Speed Control: ✔

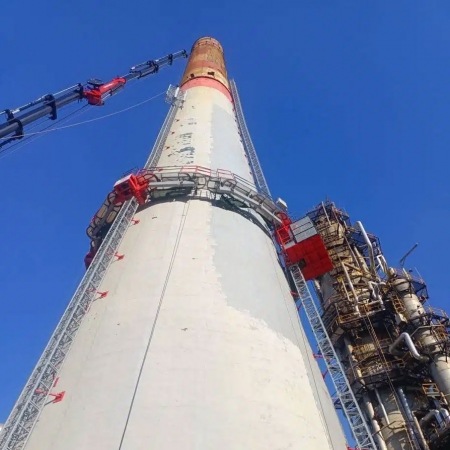

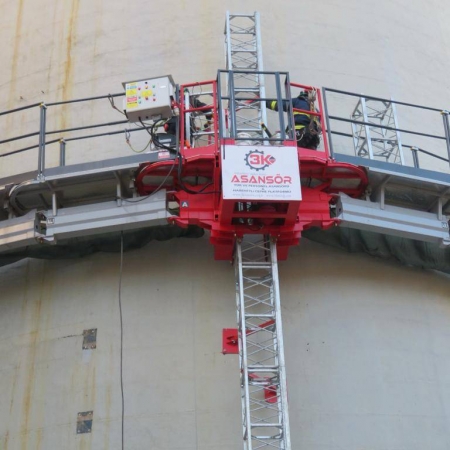

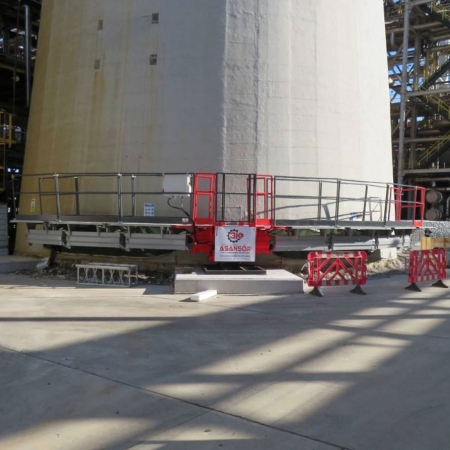

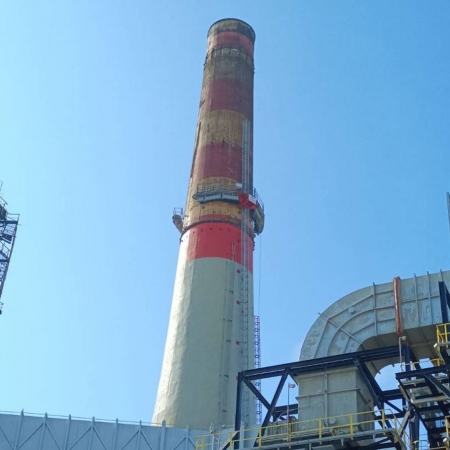

Chimney is a special manufacturing product specially designed for oval or hard-to-reach facades such as ship hulls. It is used to perform facade works such as chimney maintenance, construction, dismantling, maintenance, painting and repair.

All platform wings are movable.
Provides a safe working environment by wrapping around oval and curved facades.
It is an ideal product for uneven facades.

Technical Specifications

Engine Power (kW)	4.4 kW & 6 kW
Basic Supply (Vac)	3×400 +/- 10%
Basic Supply (Hz)	50 +/- 5%
Control Circuit Voltage (V)	48
Control Circuit Frequency	50
Maximum Start Intensity (A)	54
Maximum Consumption (KVA)	6
Magnetothermic motors	3x25A
Thermal Motors	2×5,5/8A
Magnetothermic Control Circuit (First)	2x3A
Magnetothermic Circuit (Secondary)	1x6A
Current for Portable Appliances (V,lac)	220,16
Minimum Supply (KVA)	10

SPECIFICATIONS

ELECTRIC

1. Up and down stop switches; used to prevent the platform from hitting the ground or separating from the column.

2. Safety switch; It is used to prevent the system from operating in case of a malfunction in the up and down switches of the platform.

3. Column tracking switch; It is used for the safety of the machine in assembly and disassembly as well as in ordinary work.

4. Door switch; It is used to prevent the platform from operating before the door is completely closed..

5. Parachute brake switch; used to stop the motors when the parachute brake is activated.

6. Balancing switch; Used in double column institutions to ensure that the platform runs parallel to the surface.

7. Electro-magnetic brakes; used to stop movement only in nominal situations.

MECHANICS

Parachute Brake: Used to stop the platform in case of a fall. Rubber shock absorber: Used to prevent a possible collision between the platform and the body. Manual discharge arm; It is used to safely lower the platform to the nearest floor in case of electrical supply failure. Column protector; It is used to prevent access of personnel working on the platform to moving parts. Handrails; Used for the safe operation of the personnel working on the platform.
