Thames Retracting Stairlift
Brand:
Sesame Access
Country of Origin:
United Kingdom
Sample Available: No
For product pricing, customization or other inquiries:
Request for Price
Sesame Access Systems
-
United Kingdom
- Service Provider
- Founded: 1996
-
Website:
www.sesameaccess.com -
Location:
Unit 1, Cumberland Works, Wintersell Business Park, West Byfleet
Surrey

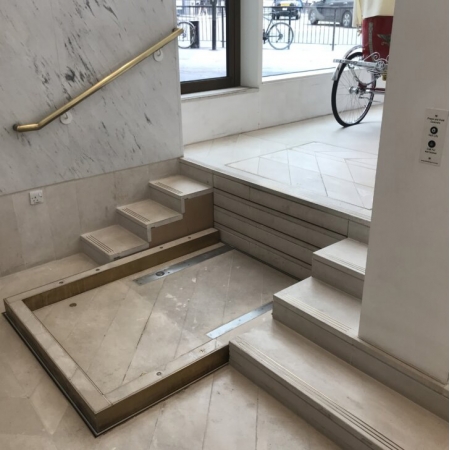

The Thames Retracting Stair Lift has horizontally retracting stairs and employs our low profile lift technology. The upper landing can either have no barrier (for lifts with a rise less than 500mm), or a manual/automatic gate.
The disabled access lift itself requires a pit of just 175mm (plus the thickness of the cladding specified).
Specifications
Minimum horizontal pit length
2896 mm
Minimum platform size
1620 x 1212 mm
Maximum rise
999 mm
Minimum pit depth below lower landing
175 mm + cladding & bedding
Features
The Thames Retracting Stair Lift uses our low-profile wheel stop technology. A solid stainless steel toe guard rises around the platform lift to prevent wheelchair wheels from rolling off the access lift. Please see on lift barriers for more information.
The lift table can be made to accept any cladding material. Note the thickness of the cladding affects the pit depth required.
Nominal platform dimensions for this lift can vary due to site requirements, however, they have minimum dimensions of:
1619 mm (l) x 1212 mm (w) x 0-750 mm (h)
If the height is between 750-999:
2172 mm (l) x 1212 mm (w) x 751-999 mm (h)
The upper landing barrier
The Thames Retracting Stair Lift in this example does not have an upper landing barrier as the rise is less than 500 mm.
User type
The Thames Retracting Stair Lift is for wheelchair users only. Non-wheelchair users are often presented with a wheelchair to use when travelling on this lift.
