Ascendor vertical lift Unaporte: The Perfect Lift For Your Residential & Commercial Building, Max. lifting height of 3m, Load Capacity 385 kg
Model:
UnaPorte
Brand:
Ascendor
Country of Origin:
Australia
Sample Available: No
For product pricing, customization or other inquiries:
Request for Price
Direct Lifts Australia
-
Australia
- Manufacturer
-
Website:
www.directlifts.com.au -
Location:
43 Telford St, Virginia
Brisbane
Queensland
Unaporte: Your Gateway to Seamless Connections and Opportunities
The Perfect Lift For Your Residential & Commercial Building
Suitable for a maximum lifting height of 3m
PRODUCT FEATURES
- Lifting Height: between 600mm and 2000mm
- Stops: up to 2 stops
- Velocity: max. 9m / min
- Load Capacity: 385 kg
- Platform Size: 1400 x 1100 mm
- Floor: Anodised aluminium checker plate
- Door: 960mm passage width
Versatile Applications for Every Use Case:

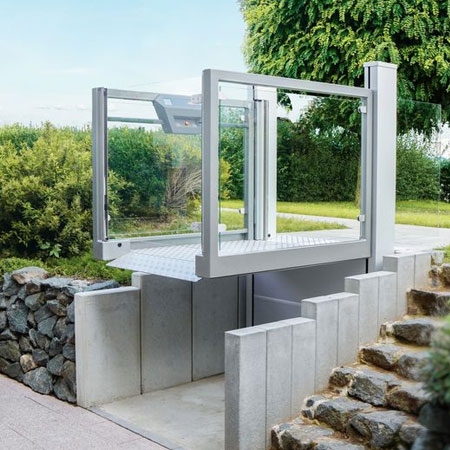

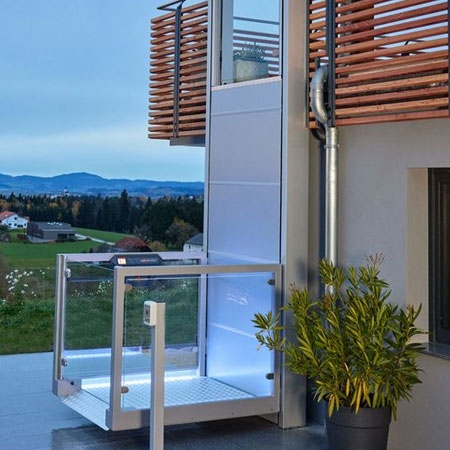

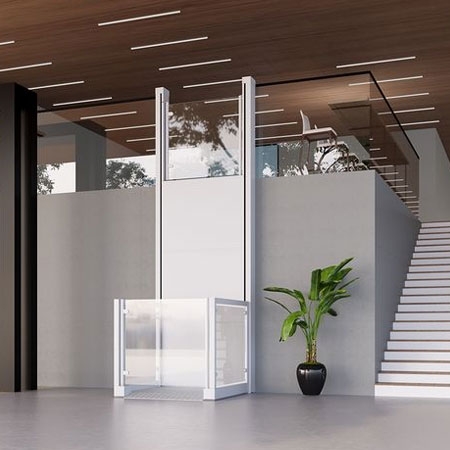

OPEN PLATFORM LIFT
The vertical lift from Ascendor proves itself in both public and private use: particularly robust materials and user-friendly technology make it an all-purpose solution for wheelchair users and people with other walking disabilities – whether with a rollator or also for convenience transporting heavy objects.
MATERIALS
Design finish in silver metallic, LED display, automatic control of the doors, soft start and soft stop, emergency call button, emergency stop switch, automatic speed reduction in front of the stops, contact baffle on the underside of the platform and grab handle.
Basic equipment.
- fully automatic control of the doors (optional)

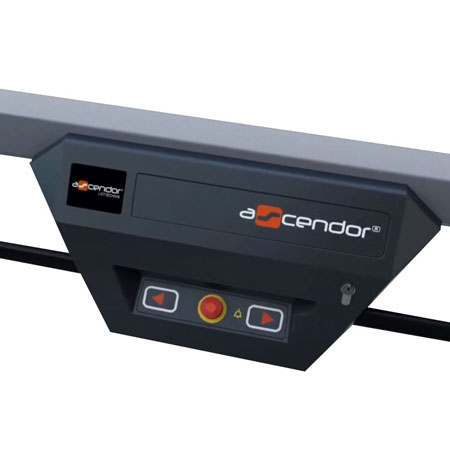

- sensor keys on the control panel
- soft start/soft stop via the frequency-controlled drive system
- for indoor and outdoor use
- the emergency call button and emergency stop function
- optimum space requirement/usable platform area ratio
- no pit required due to the drive-on ramp
- simple retrofitting
Color
- cabin RAL 9023 (pearl dark grey)
- lifting column anodised aluminium
materials
- steel/aluminium lightweight construction
- with powder coating
- panelling made of scratch-resistant plastic
speed
- max. 0.15 m/sec
- guide chain system with electric drive 0.75 kW
- safety gear with integrated speed limiter
technology
- touch colour display
- integrated error memory
- numerous setting options
- RGB LED lighting (optional)
- voice output (optional)
- radio remote control: lockable radio pushbuttons
- platform sizes in mm: 1400 x 1100 mm (LxW)
- rail: aluminium profile
- load capacity: 385 kg standard
- space requirement: 1675 x 1290 mm (LxW) with a closed cabin
