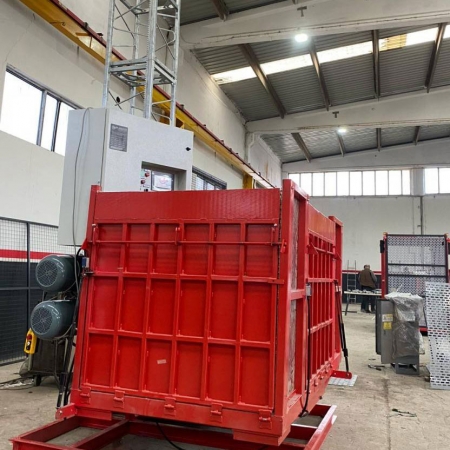

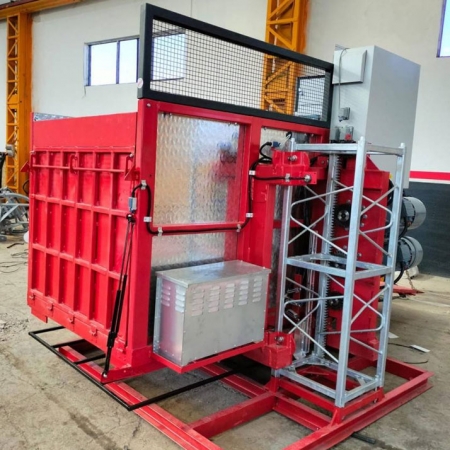

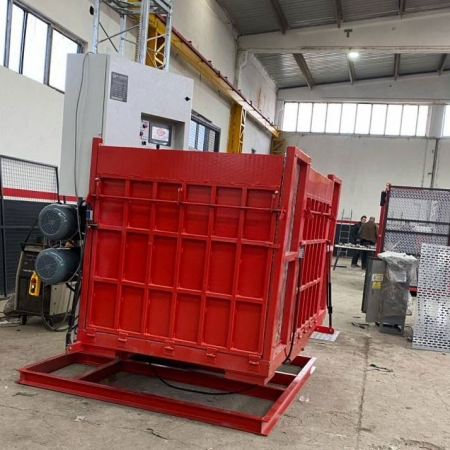

WRLIFT, 1500DH Personnel and Material Hoist Elevator (Open Cage), Maximum Height: 200 m, Capacity: 1500 kg, Speed: 26 m/dk
Model:
1500DH OPEN CAGE
Brand:
WRLIFT
Country of Origin:
Turkey
Payment Terms:
L/C, D/P
Sample Available: No
For product pricing, customization or other inquiries:
Request for Price
WRLIFT
-
Turkey
- Manufacturer
-
Website:
www.wrlift.com -
Location:
Orhaniye Mah. Fatih Sultan Mehmet Blv. No: 362, Kahramankazan
Ankara
1500DH FREIGHT AND PERSONNEL ELEVATOR (OPEN CAGE)
- Maximum Height: 200 m
- Capacity: 1500 kg
- Cabin Size: 1250 x 2500 x 2200 mm
- Speed: 50-60 Hz: 26 m/dk
- Piece of Column Size: 510 x 510 x 1497 mm
- Pipe Size Piece of Column: TUBE
- Weight Piece of Column: 90 kg
Technical Specifications
|
Transport
Capacity |
1500
kg |
|
Maximum
Height |
200 m |
|
Column
Dimensions |
500x500x1490
mm |
|
Weight of
each vertical column |
55
kg |
|
Connection
Range |
6 m |
|
Elevator
speed |
24 m/min |
|
Cabin
Dimensions |
1250 x
2000 mm |
|
Ramp width |
1000
mm |
|
Supply
Voltage |
380/50
Volt/Hz |
|
Control
Voltage |
24
Volt |
|
Engine
Power |
2 x
7.5 Kw |
|
Current |
60 A |
Features
- PLC system showing the open and closed contacts of the elevator, the load inside and malfunctions,
- Ability to record all past failures,
- 400 hours automatic maintenance warning,
- Load Cell (electronic weighing) system,
- Lenze speed controller + (Inverter),
- YILMAZ brand bevel gearboxes,
- GAMAK brand engines,
- Temporiti + Dereli brand 24V brakes,
- Cable trolley,
Safety Standards
- Speed sensitive parachute brake system,
- Touch screen with Control Unit and the ability to see all malfunctions on the screen
- Stop stop mast without a rack,
- Connection with anchor arms every 6 meters,
- Upper and lower limit switches to limit car movement,
- Emergency Stop Button,
- Low and high voltage protection,
- Audible warning system before each movement,
- Continuous audible warning system on descents,
- Manual lowering handle,
- Emergency siren system,
- Warning signs.
