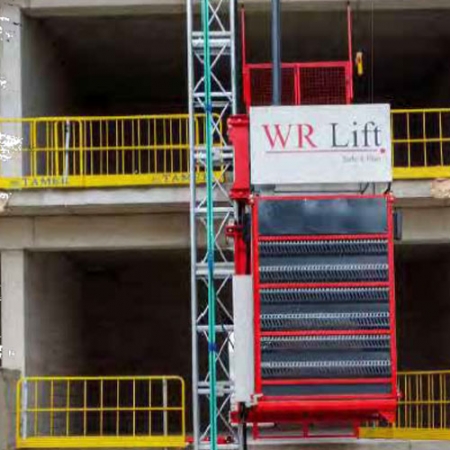

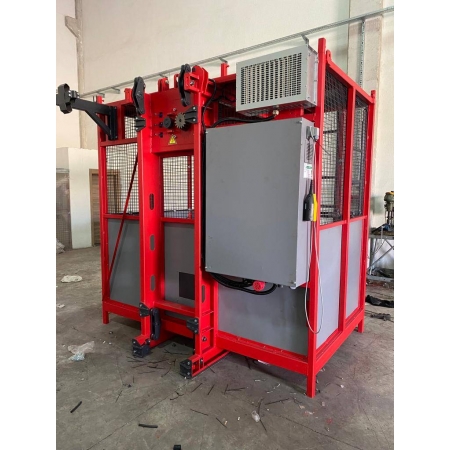

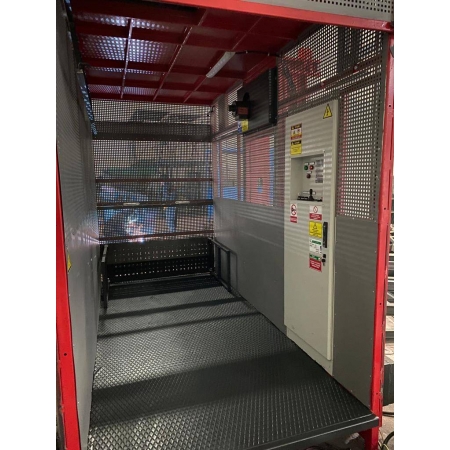

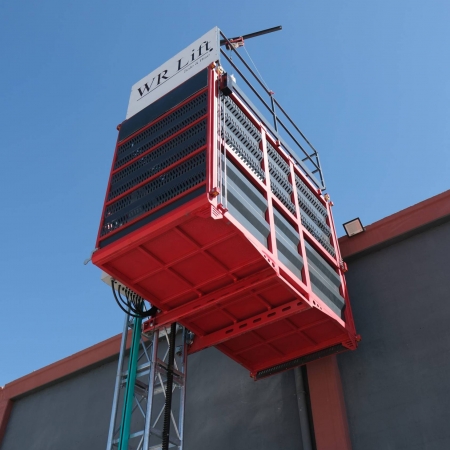

WRLIFT, Material And Personnel Hoist Elevator, Transport Capacity 2000 kg, 22 Personnel, Maximum Height 200 m, Speed: 42 m/min
Model:
2000DH
Brand:
WRLIFT
Country of Origin:
Turkey
Product Approvals:
2006/42-CE, CE
Payment Terms:
L/C, D/P
Sample Available: No
For product pricing, customization or other inquiries:
Request for PriceWRLIFT
-
Turkey
- Manufacturer
-
Website:
www.wrlift.com -
Location:
Orhaniye Mah. Fatih Sultan Mehmet Blv. No: 362, Kahramankazan
Ankara
WORKING PRINCIPLE OF PERSONNEL AND MATERIAL ELEVATORS
Personnel and Material elevators have been developed to transport personnel and materials in vertical-vertical direction in different sectors, especially in construction. Thanks to the advantages and easy installation of Personnel and Material elevators, productivity, safe operation, durability and ease of use increase in construction. Elevator R&D Department has developed the DH2000 Series by prioritizing personnel safety, work accidents and ease of use. The DH2000 model, which has a carrying capacity of 2 tons, is designed for medium and high density construction sites, highly efficient and suitable for heavy duty operation. DH2000 Series can be used automatically with the optional floor recognition system as well as manual use. Electronic weighing system (Load Cell) is standard in our products. Load Cell system prevents the elevator from being loaded over its capacity. Thanks to the cabin body that can be produced modularly, it can be made suitable for in-shaft applications. Thus, even if the elevator shafts are covered, the cabin can be easily removed from the shaft.
Technical Specifications
|
Transport Capacity |
2000 kg |
|
Number of Portable People |
22 Personnel |
|
Maximum Height |
200 m |
|
Column Dimensions |
600x600x1482,5 mm |
|
Krameyer gauge |
60x40x1482,5 8 modül |
|
Weight of each vertical column |
105 kg |
|
Connection Range |
6 m |
|
Elevator speed |
42 m/min |
|
Cabin Dimensions |
1500 x 3000 x2200 mm |
|
Ramp width |
1000 mm |
|
Supply Voltage |
380/50 Volt/Hz |
|
Control Voltage |
24 Volt |
|
Engine Power |
2×15 Kw |
|
Current |
60 A |
|
Maximum wind speed during disassembly and
assembly |
45 km/h |
|
Maximum wind speed during the use of the
freight elevator |
55 km/h |
