WRLIFT, Material And Personnel Hoist Elevator, Transport Capacity 2000 kg X 2 (22 Personnel) Maximum Height 200 m, Speed: 42 m/min
Model:
2000DH DOUBLE
Brand:
WRLIFT
Country of Origin:
Turkey
Product Approvals:
2006/42-CE, CE
Payment Terms:
L/C, D/P
Sample Available: No
For product pricing, customization or other inquiries:
Request for Price
WRLIFT
-
Turkey
- Manufacturer
-
Website:
www.wrlift.com -
Location:
Orhaniye Mah. Fatih Sultan Mehmet Blv. No: 362, Kahramankazan
Ankara
2000DH DOUBLE
- Maximum Height: 200 m
- Capasite: 2000 kg
- Cabin Size: 1450 x 3000 x 2200 mm
- Speed 50-60 Hz: : 30 mt/ dk – 42 m/ dk 11 kw /15 kw
- Motor Power: 2 x 11 kW – 2 X 15 kW
- Cable: WIRELESS BUSBAR
- Piece of Column Size: 600 x 600 x 1482,5 mm
- Piece of Column Size: ø60*5mm Drawn Steel Tube
- Weight Piece of Column: 105 Kg

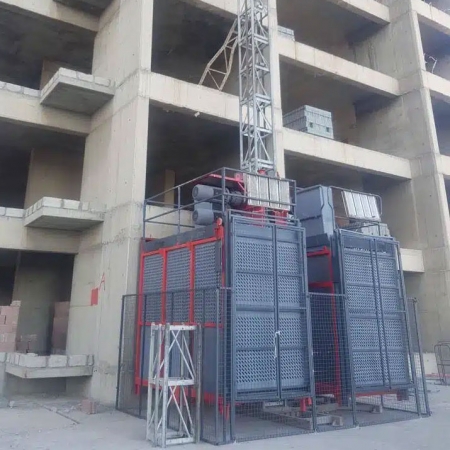

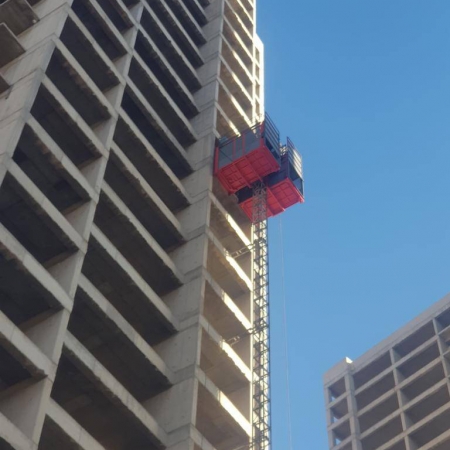

WHAT ARE DOUBLE FREIGHT AND PERSONNEL ELEVATORS?
• They are double car elevators moving on the same mast.
• It has 2×2000 kg carrying capacity. • It is preferred because it does not take up much space in the construction site.
Technical Specifications
|
Transport Capacity |
2000 kg X 2 |
|
Number of Portable People |
22 Personnel |
|
Maximum Height |
200 m |
|
Column Dimensions |
600x600x1482,5 mm |
|
Krameyer gauge |
60x40x1482.5 8 modules |
|
Weight of each vertical column |
105 kg |
|
Connection Range |
6 m |
|
Elevator speed |
30 m/min |
|
Cabin Dimensions |
1500 x 3000 x2200 mm |
|
Ramp width |
1000 mm |
|
Supply Voltage |
380/50 Volt/Hz |
|
Control Voltage |
24 Volt |
|
Engine Power |
2×11 Kw X 2 |
|
Current |
60 A |
|
Maximum wind speed during disassembly and assembly |
45 km/h |
|
Maximum wind speed during the use of the freight elevator |
55 km/h |
Features
- Soft start and stop system
- Double-sided relaxed ergonomic door
- High-strength tower and hull design
- Fault display in the electrical panel
- Crane bracket for easy installation
- Safety dual motor system
- Reinforced and upgraded main chassis
- Full safety mechanical parachute brake
- Manual brake release system
- Ease of assembly and disassembly
- Downward anti-slip control system
- Full floor level stop system (optional)
- Floor sending system (Optional)
- Automatic/opening loading ramp (Optional)
- Modular cabin design
- Possibility of both in-well and outdoor installation
- Ability to change door direction
- Electronic Weighing Scale
- Extra resistance against wind thanks to Wireless Busbar system
Safety Equipment
- Speed sensitive parachute brake system (Alimak type),
- Touch screen with Control Unit and the ability to see all malfunctions on the screen
- Stop stop mast without a rack,
- Connection with anchor arms every 6 meters,
- Upper and lower limit switches to limit car movement,
- Emergency stop button,
- Low and high voltage protection,
- Audible warning system before each movement,
- Continuous audible warning system on descents,
- Manual lowering handle,
- Emergency siren system,
- Warning signs.
